Salice-C2AYA99

Download Data Sheet

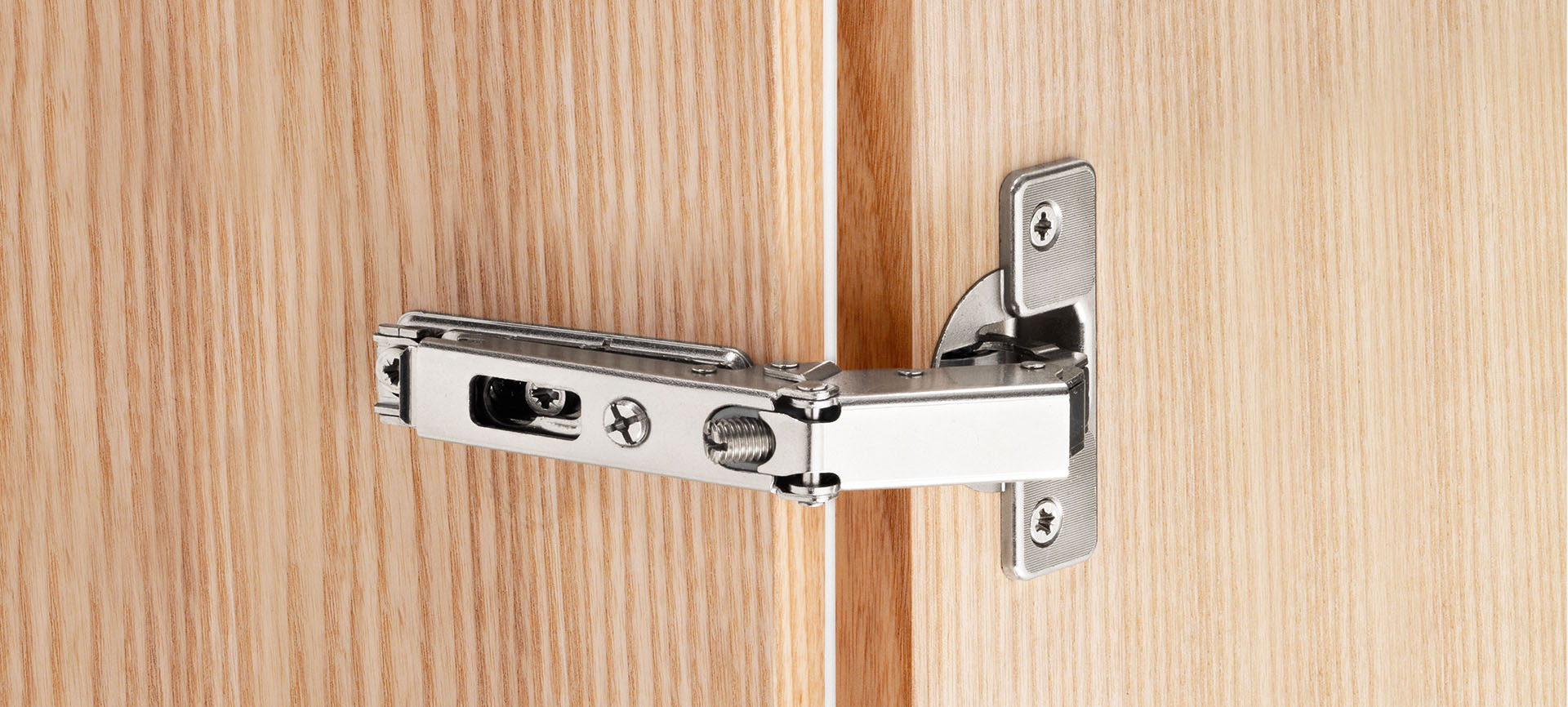

– Hinges for corner cabinets.
– 11 mm deep die-cast cup.
– 35 mm cup diameter.
– Opening angle of the first door 70°.
– Possible drilling distance on the door (K) : from 3 to 6 mm.
– Maximum thickness of the door with square edges: 23 mm.
– For thicker doors or doors with mouldings or with large radiussed edges, please refer to our technical assistance.
– Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
