Salice Air

Download Data Sheet

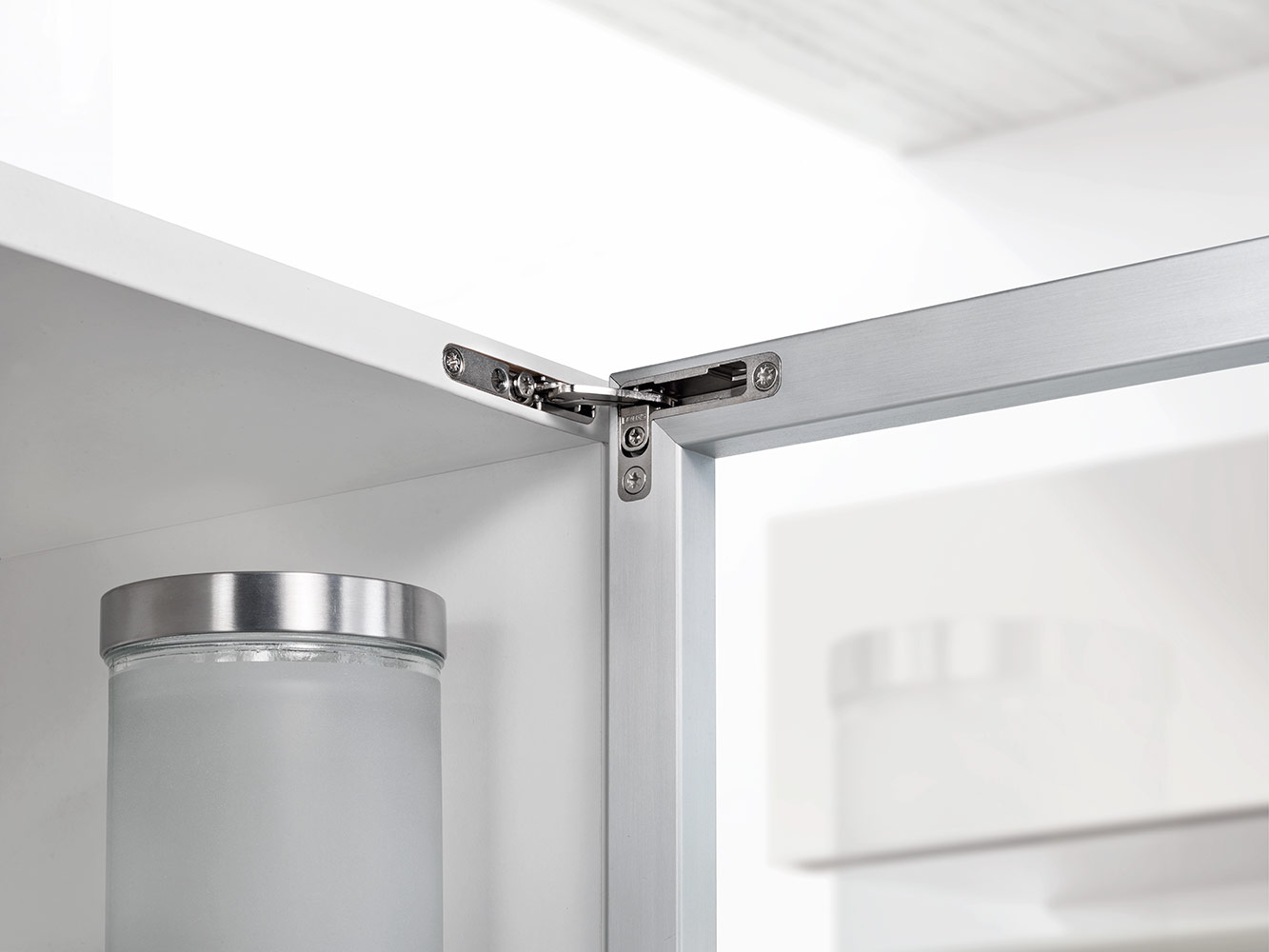

• The hinge is characterised by compactness and by a small size; it incorporates an integrated soft close mechanism for decelerated closing.

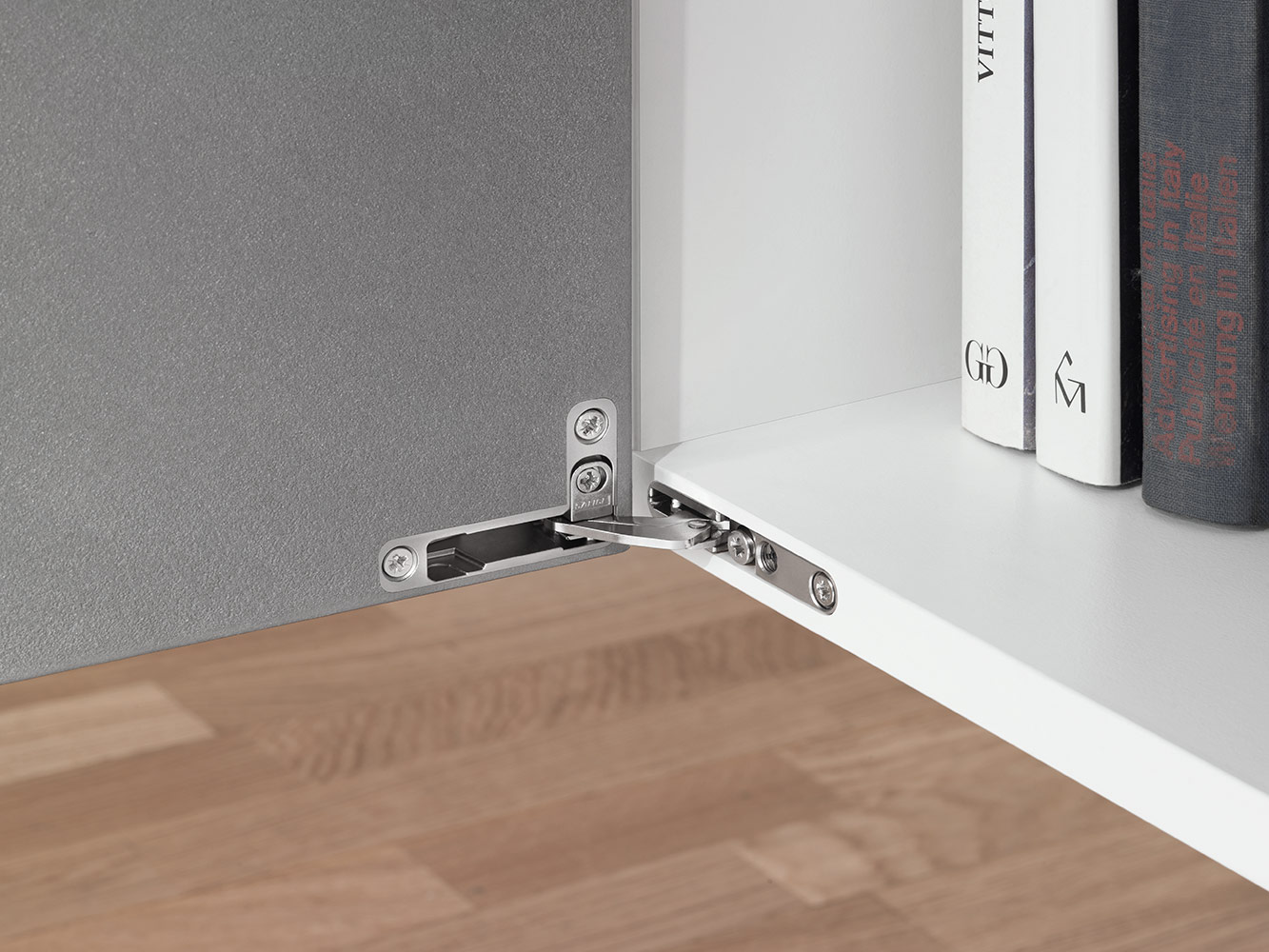

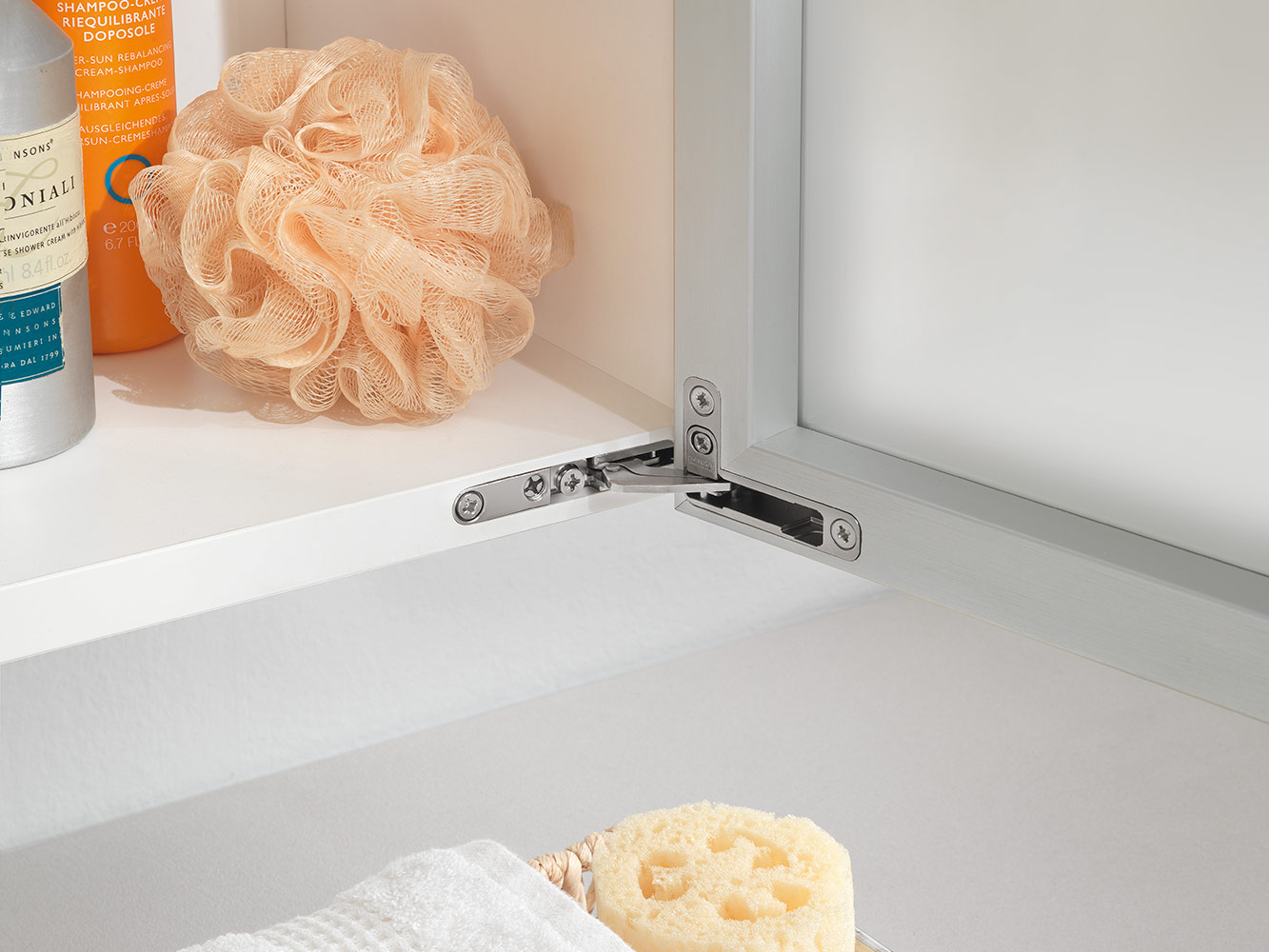

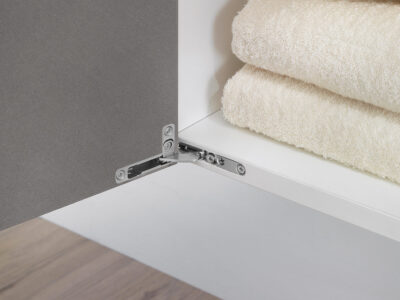

• It is fitted to the top and bottom panel of the cabinet.

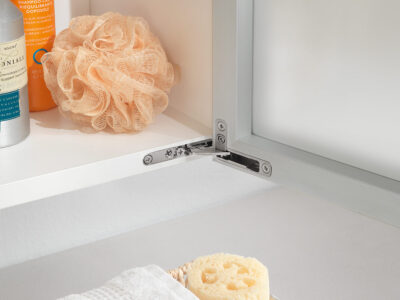

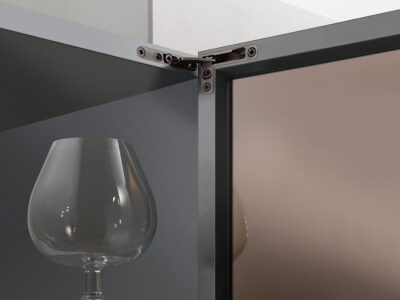

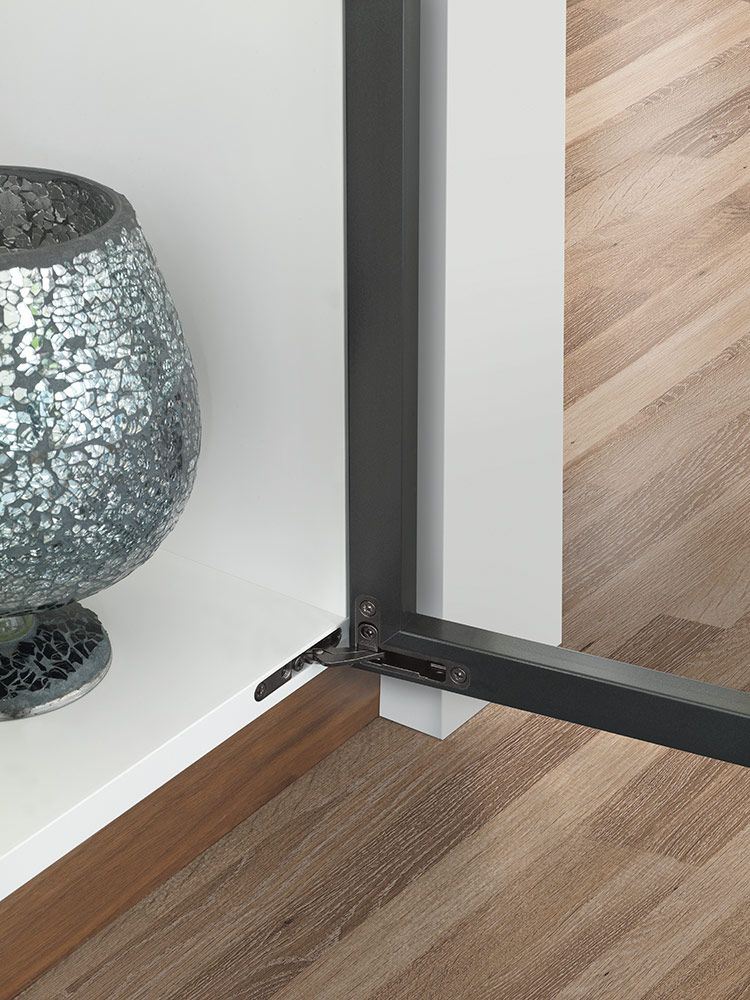

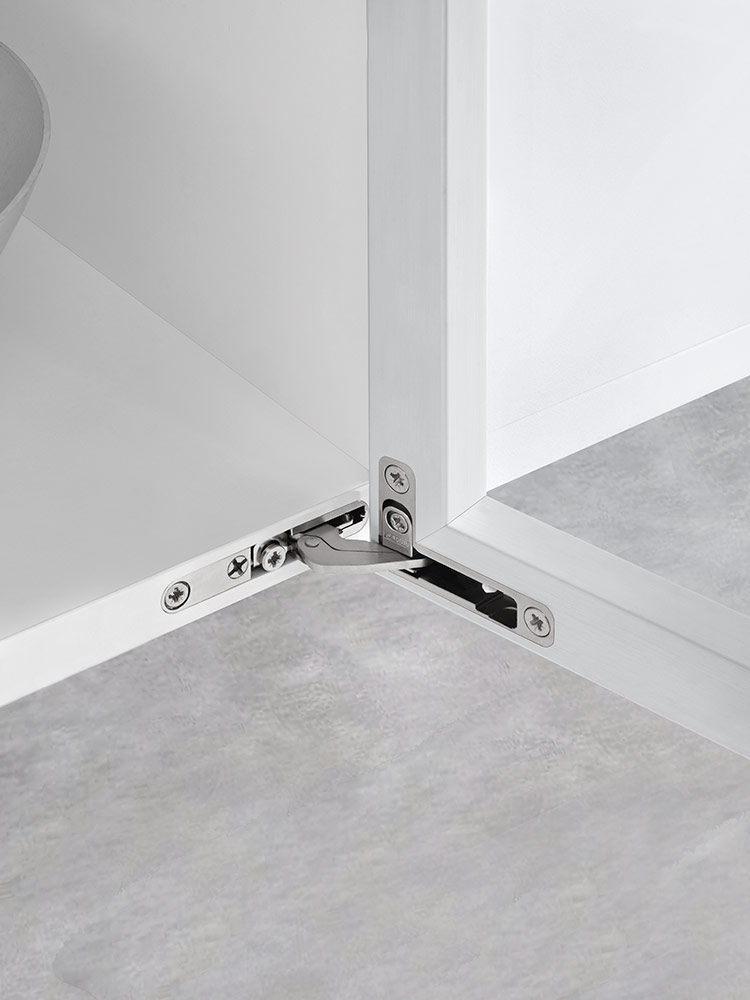

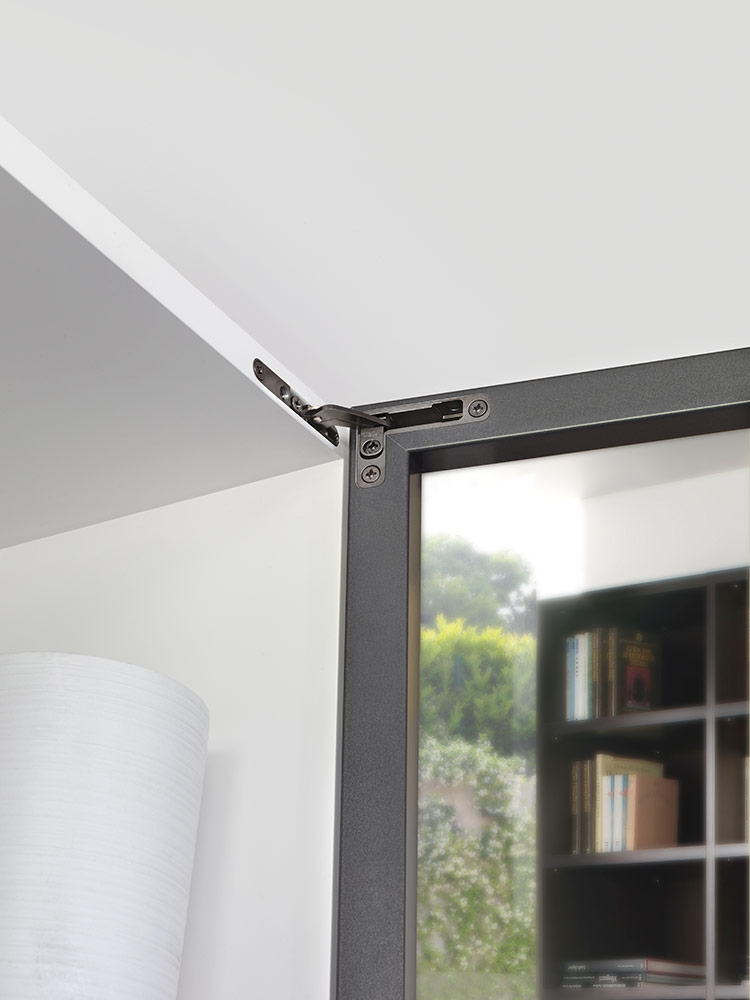

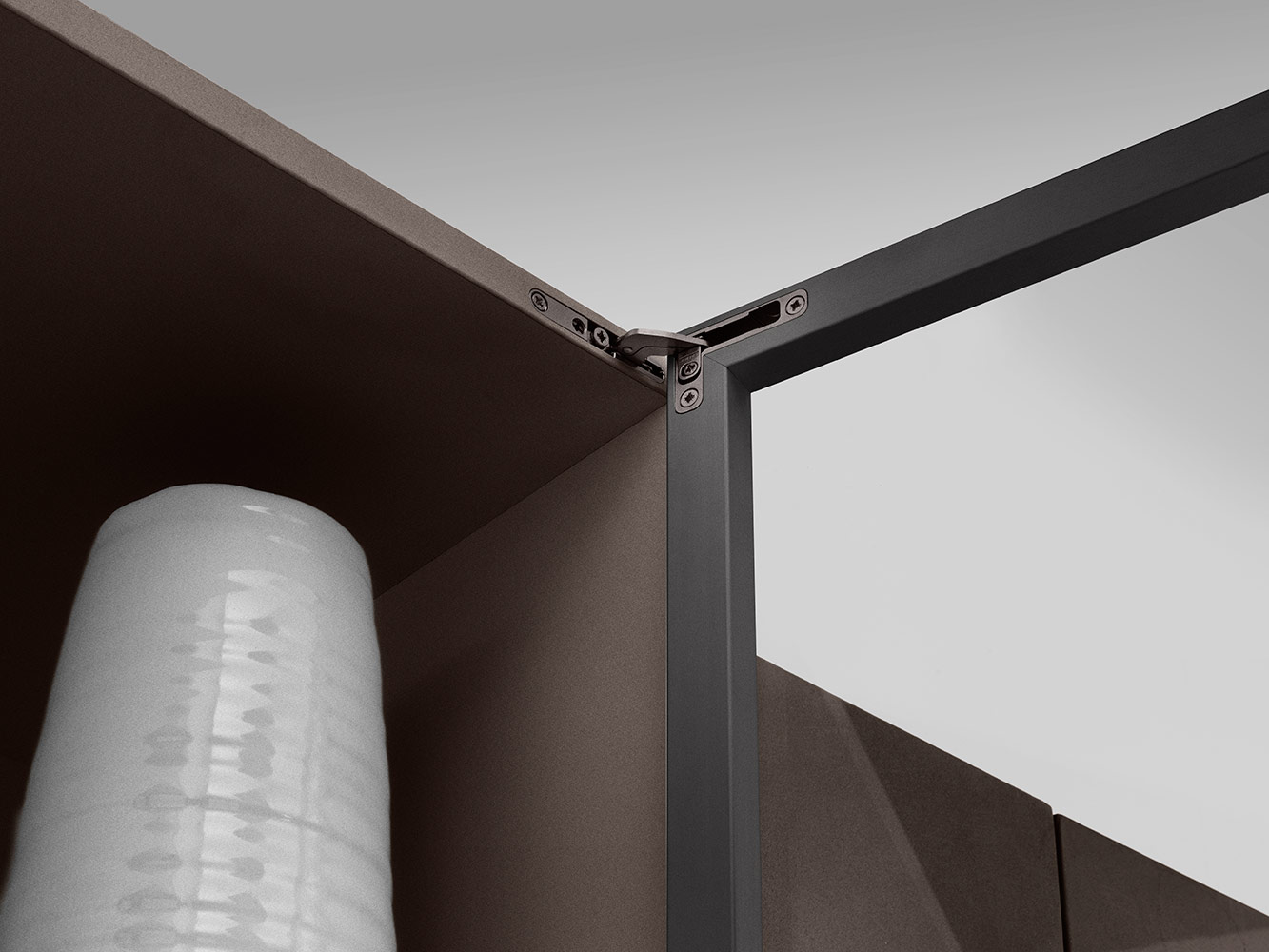

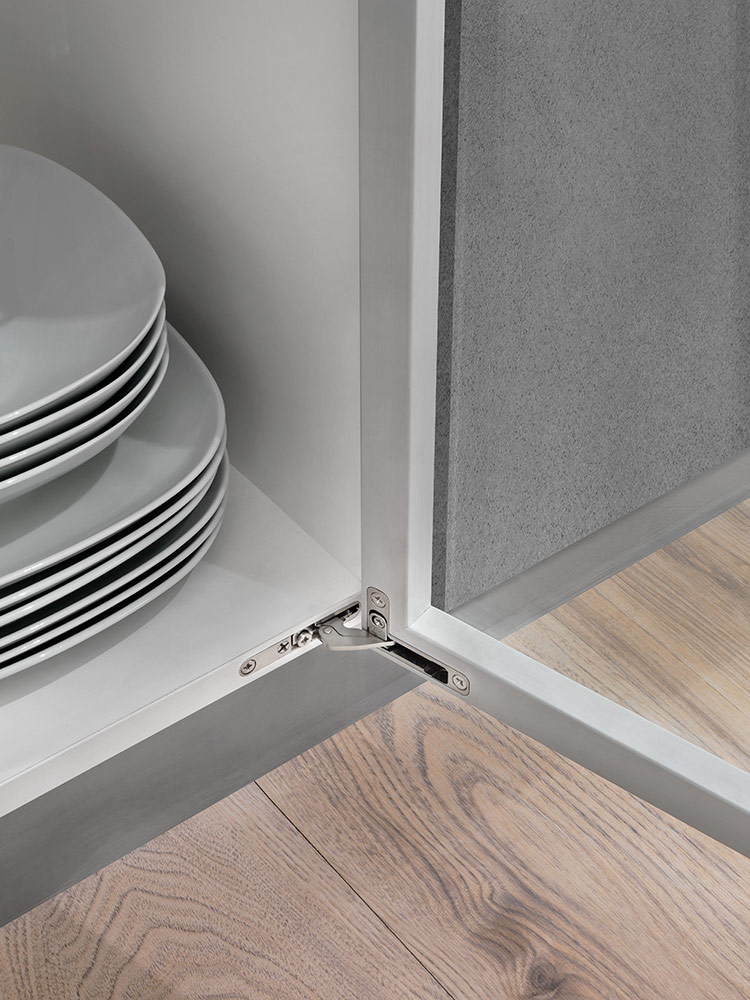

• For min. 18 mm thick wooden doors and for aluminium-framed doors.
• Max. door weight 25 Kg.
• Max. dimensions of the door : height 2700 mm, width 600 mm.
• 16.5 mm deep metal cup.
• L = 2.5 mm
• 105° opening.
• Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors.
• Fixed K = 4 mm for aluminium-framed doors.
